Fujinon HS18x5.5B ERD-S

Description

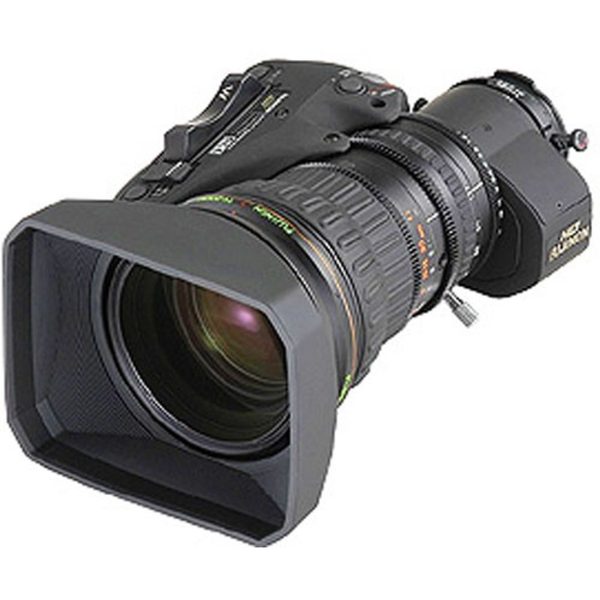

The Fujinon HS18x5.5BERD-S is a professional 18x HD ENG/EFP zoom lens designed for 1/2-inch broadcast and XDCAM HD cameras. With a versatile 5.5–100mm focal-length range, integrated 2x extender, servo focus, and servo zoom, this lens provides the flexibility needed for electronic news gathering, live events, sports, documentary production, corporate video, and field production.

The built-in 2x extender instantly expands the effective focal-length range to 11–200mm, providing substantially more reach when shooting distant subjects without changing lenses. The lens also incorporates Fujinon’s QuickZoom technology, allowing operators to rapidly move to the telephoto end of the zoom range to confirm focus.

Key Features

• 18x optical zoom
• 5.5–100mm focal-length range
• 11–200mm effective range with integrated 2x extender
• Designed for 1/2-inch 16:9 sensors
• Professional HD optical design
• Servo-controlled focus
• Servo-controlled iris
• Servo zoom
• Fujinon QuickZoom functionality
• Minimum object distance of approximately 0.6m / 2 ft
• 64° horizontal angle of view at the wide end
• Approximately 4° horizontal angle of view at the telephoto end
• M82 front filter thread
• Macro capability
• Approximately 1.5 kg / 3.3 lb

18x Zoom Range

The 5.5–100mm focal range provides a highly useful combination of wide-angle coverage and telephoto reach.

At 5.5mm, the lens provides a wide approximately 64° horizontal angle of view, making it suitable for interviews, events, press conferences, and establishing shots.

At 100mm, the lens reaches approximately a 4° horizontal angle of view, allowing operators to isolate distant subjects and capture tighter shots from a considerable distance.

Built-In 2x Extender

One of the major advantages of the HS18x5.5BERD-S is its integrated 2x extender.

With the extender disengaged, the lens operates from:

5.5–100mm

With the extender engaged:

11–200mm

This provides additional reach without requiring a lens change, making the lens particularly useful for sports, wildlife, stage performances, live events, and other productions where the camera may be positioned far from the subject.

Servo Zoom and Focus

The HS18x5.5BERD-S provides professional servo operation for both zoom and focus, allowing smooth lens control from the camera’s ENG-style controls.

This makes it well suited for:

• Live television
• News and documentary production
• Sports coverage
• Concerts and performances
• Corporate events
• Church and worship productions
• Interviews
• Government and institutional video
• Outdoor productions
• Long-distance subject coverage

Fujinon QuickZoom

The integrated QuickZoom function allows the operator to rapidly move the lens toward the telephoto end of the zoom range to verify focus before returning to the desired framing.

This is particularly useful in fast-moving ENG and live-production environments where operators need to confirm critical focus quickly.

HD Optical Performance

The lens was designed specifically for high-definition acquisition rather than being a standard-definition ENG lens adapted for HD. Its optical design is intended to provide the resolution and image fidelity required for HD XDCAM production.

Applications

News and ENG

Excellent for electronic news gathering where operators need to move quickly between wide establishing shots and tight subject coverage.

Sports

The 2x extender provides additional reach for athletes and action taking place at a distance.

Live Events

Useful for concerts, conferences, ceremonies, and stage productions where cameras may need to remain far from the action.

Documentary Production

The broad 5.5–100mm range allows operators to cover a wide variety of situations without changing lenses.

Corporate and Institutional Production

Ideal for interviews, presentations, conferences, and multi-camera productions.

Wildlife and Outdoor Production

The 100mm native telephoto range combined with the 2x extender provides up to 200mm of reach.

Compatibility

The HS18x5.5BERD-S is a 1/2-inch broadcast B4-mount lens, rather than the larger 2/3-inch B4 format. It was designed for Sony’s 1/2-inch XDCAM HD camera systems and compatible 1/2-inch broadcast cameras.

Before rental, verify that your camera has the appropriate 1/2-inch B4 mount and supports the lens’s servo connections.
