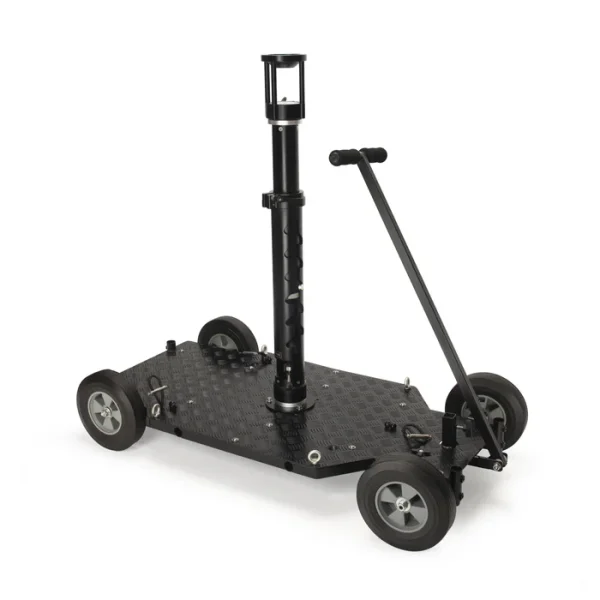

Proaim Quad Plus Professional Dolly System

The Proaim Quad Plus Professional Dolly System is a heavy-duty cinema doorway dolly designed for professional film, television, commercial, music video, and studio production. Built around a robust steel and CNC-machined aluminum platform, the Quad Plus provides a stable and versatile foundation for professional camera systems, tripods, sliders, jibs, geared heads, and other Euro/Elemac-compatible equipment.

With a maximum payload of 200 kg / 440 lb, the Quad Plus is designed to handle substantial camera and production configurations while maintaining smooth maneuverability on set.

Key Features

• Maximum payload: 200 kg / 440 lb
• Heavy-duty steel and CNC aluminum construction
• 40 × 23″ camera platform
• Low platform height of approximately 5.7″ / 14.5 cm
• 2-wheel steering system
• Tight turning radius of approximately 6 ft / 2 m
• Adjustable telescoping rear axle
• Steering push/pull bar
• 10″ wheels
• Hard rubber wheels for smooth-floor operation
• Compatible with Proaim heavy-duty dolly tracks
• Compatible with tripods, sliders, jibs, geared heads, and camera rigs
• Includes telescopic camera bazooka
• Includes 100mm Euro/Elemac bowl riser

Heavy-Duty Construction

The Quad Plus uses a steel lower platform combined with a high-grade CNC aluminum upper platform. This construction provides a rigid and stable base for large camera configurations.

With a rated payload of 200 kg / 440 lb, the dolly can accommodate substantially heavier equipment than typical portable camera dollies.

Low-Profile Camera Platform

The platform sits only 14.5 cm / 5.7 inches above the ground, making the Quad Plus particularly useful for low-angle cinematography.

The low platform height allows operators to achieve perspectives that would be difficult to obtain with a conventional tripod or taller dolly system.

Maneuverability

The Quad Plus is designed for use on both large and relatively confined sets.

Its 2-wheel steering system allows the dolly to negotiate a turning circle of approximately 2 meters / 6 feet, making it useful for interiors, narrow locations, and studio environments.

The steering push/pull bar provides straightforward control for moving the dolly forward, backward, and around the set. The rear axle can also telescope outward to increase the stance and provide additional stability.

Telescopic Bazooka

The included Proaim telescopic bazooka provides a versatile camera mounting solution.

The bazooka adjusts from approximately 27″ to 42″ / 69–107 cm and uses a 100mm bowl. Four safety locking hooks provide additional security when mounting heavier camera configurations.

This allows the Quad Plus to function as more than a simple platform dolly. Camera operators can configure it for different camera heights and shooting styles without needing a separate conventional tripod.

Flexible Camera Configurations

The Quad Plus can be configured with a variety of professional camera support equipment, including:

• Fluid heads
• Cinema cameras
• Broadcast cameras
• Tripods
• Sliders
• Jibs
• Geared heads
• Euro/Elemac-compatible accessories
• 100mm bowl systems
• Professional camera rigs

The included Euro/Elemac adapter has a 200 kg / 440 lb rated capacity, providing a strong mounting interface for compatible accessories.

Track Compatibility

The Quad Plus can be configured for track-based dolly operation using compatible track wheels.

It is compatible with:

• Proaim 16ft Heavy-duty Camera Dolly Track – TRK-16-25
• Proaim Stream 16ft Heavy-duty Cinema Track – TK-STRS-00

The adjustable track spacing accommodates approximately 22.5–27 inches, depending on the configuration.

This makes the Quad Plus an excellent companion to the Proaim Stream 16ft Heavy-duty Cinema Track for professional dolly shots.

Ideal Applications

The Proaim Quad Plus is ideal for:

• Feature film production
• Television production
• Commercials
• Music videos
• Corporate productions
• Studio production
• Documentary filmmaking
• Live events
• Low-angle cinematography
• Tracking shots
• Push-in and pull-out shots
• Lateral camera movement
• Heavy camera configurations
• Jib and crane setups
• Slider setups

Specifications

Model: Proaim Quad Plus Professional Dolly
SKU: P-QUAD-PL
Maximum Payload: 200 kg / 440 lb
Platform Size: 40 × 23″
Platform Height: 14.5 cm / 5.7″
Wheel Diameter: 10″
Wheel Thickness: 1.77″
Wheel Material: Hard Rubber
Steering: 2-wheel steering
Steering Bar: 270° tilt
Track Spacing: 22.5–27″ adjustable
Dolly Construction: Steel + high-grade CNC aluminum
Dolly Weight: Approximately 80 kg / 176.3 lb
Bazooka Height: 27–42″ / 69–107 cm
Bazooka Payload: 200 kg / 441 lb
Bazooka Bowl: 100mm

Included

Proaim Quad Plus Professional Dolly
Steering Push/Pull Bar
Proaim Telescopic Bazooka with Quick Lock Lever
100mm Euro/Elemac Bowl Camera Riser

The manufacturer’s listed package includes the bazooka and 100mm bowl riser.

Why Rent the Proaim Quad Plus?

The Quad Plus is a strong choice for productions that need a professional dolly capable of carrying a substantial camera package while remaining versatile enough for different shooting configurations.

Its low profile, tight steering radius, heavy payload capacity, telescopic bazooka, and compatibility with Proaim track systems allow one dolly to serve multiple production roles.

For productions using the Proaim Stream 16ft Heavy-duty Cinema Track, the Quad Plus can also be configured as a professional track dolly, making it a particularly useful addition to a larger camera movement package.
