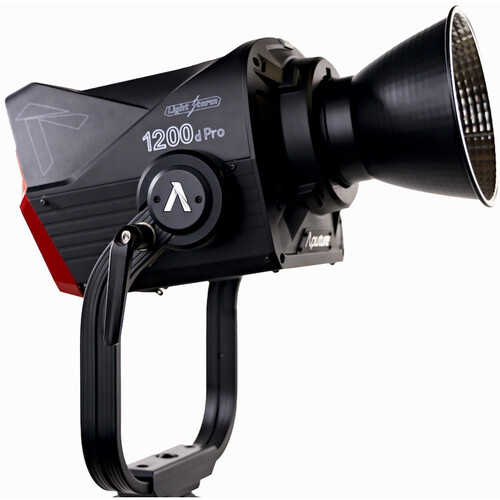

Aputure LS 1200d Pro

Description

The Aputure Light Storm LS 1200d Pro is a professional 1,200W daylight-balanced COB LED point-source fixture designed for high-output film, television, commercial, broadcast, and photography production. As one of Aputure’s flagship Light Storm fixtures, the 1200d Pro combines extremely high output with Bowens Mount compatibility, professional DMX/CRMX control, weather resistance, and flexible AC or DC power options.

With the included LS 1200 Series Hyper Reflectors, the LS 1200d Pro can deliver up to approximately 83,100 lux at 3 meters using the Narrow reflector. The interchangeable Narrow, Medium, and Wide reflectors provide different beam angles and allow the fixture to be adapted for focused long-distance lighting, general-purpose illumination, or broader coverage.

Key Features

• 1,200W daylight-balanced COB LED
• 5600K color temperature
• CRI ≥96
• TLCI ≥98
• CQS ≥95
• SSI D56 ≥73
• Extremely high-output point-source design
• Up to 83,100+ lux at 3m with Narrow Hyper Reflector
• Three interchangeable Hyper Reflectors included
• 15° Narrow reflector
• 30° Medium reflector
• 45° Wide reflector
• Universal Bowens Mount
• 0–100% stepless dimming
• 0.1% intensity control increments
• IP54 weather-resistant construction
• Built-in LumenRadio CRMX
• 5-pin DMX/RDM
• Art-Net and sACN via etherCON
• Sidus Link app control
• Built-in lighting effects
• AC and professional 48V DC power options
• 28mm / 1.125″ Junior Pin mounting
• Professional rolling transport case

Aputure specifies the fixture at 1,200W maximum output and up to 1,440W maximum power consumption.

Exceptional Output

The LS 1200d Pro was designed to provide the kind of punch traditionally associated with large HMI fixtures while maintaining the flexibility of an LED system.

With the Narrow Hyper Reflector, Aputure rates the fixture at approximately:

• 83,100 lux at 3m
• 28,340 lux at 5m
• 15,200 lux at 7m
• 8,580 lux at 9m

The Medium and Wide reflectors provide broader beam coverage while sacrificing some intensity.

This makes the LS 1200d Pro particularly useful when lighting through windows, pushing light across large spaces, creating powerful backlights, or bouncing light from large diffusion frames and reflective surfaces.

Three Hyper Reflectors

The LS 1200d Pro package includes three purpose-built Hyper Reflectors:

Narrow – 15°
Designed for maximum intensity and long-distance applications.

Medium – 30°
Provides a balance between output and coverage for general production use.

Wide – 45°
Provides broader coverage for larger areas and bounce applications.

The three-reflector system allows the same fixture to be configured for dramatically different lighting situations without requiring additional lighting heads.

Bowens Mount Compatibility

The LS 1200d Pro uses a universal Bowens Mount, allowing it to work with a wide range of professional lighting modifiers.

Compatible accessories can include:

• Aputure Light Dome series
• Aputure F10 Fresnel
• Aputure Lantern
• Bowens-mount softboxes
• DoPchoice modifiers
• Chimera modifiers
• Bowens-mount reflectors and specialty accessories

With a Fresnel such as the Aputure F10, the LS 1200d Pro can be used as a powerful controlled hard source. Aputure lists approximately 32,410 lux at 3m in F10 Spot mode.

Professional Lighting Control

The LS 1200d Pro is designed for professional lighting departments and integrates with modern wired and wireless lighting-control systems.

Control options include:

• Onboard controls
• Sidus Link app
• 5-pin DMX/RDM
• LumenRadio CRMX
• Art-Net
• sACN
• etherCON networking

LumenRadio provides wireless DMX control with a specified operating range of up to approximately 100 meters, while Bluetooth/Sidus Link control is specified at up to approximately 80 meters depending on operating conditions.

Weather-Resistant Design

The LS 1200d Pro features an IP54-rated weather-resistant design, making it suitable for demanding location production and light outdoor conditions.

Its weather-resistant construction incorporates sealed components, weatherproof connectors, and protected cooling systems.

The fixture should still be operated according to manufacturer guidelines in wet conditions. Aputure specifically notes that water-related damage is not covered under warranty.

Power Options

The LS 1200d Pro can operate from standard 100–240V AC power and also supports professional 48V DC power solutions.

The control box has two 48V DC inputs. One input can operate the fixture at approximately half output, while both inputs are required for full output. Each input is rated for 48V/15A and approximately 720W.

The fixture has a maximum power consumption of approximately 1,440W, making it significantly more manageable on appropriately sized generators than many comparable high-output HMI fixtures.

Built-In Lighting Effects

The LS 1200d Pro includes eight built-in lighting effects:

• Paparazzi
• Fireworks
• Lightning
• Faulty Bulb
• TV
• Pulsing
• Strobe
• Explosion

These effects can be useful for practical lighting simulation and creative cinematography.

Applications

The Aputure LS 1200d Pro is ideal for:

• Feature film production
• Commercial production
• Television production
• Music videos
• Narrative filmmaking
• Large interviews
• Studio production
• High-output key lighting
• Large-scale backlighting
• Window lighting
• Exterior daylight simulation
• Large diffusion frames
• Bounce lighting
• Long-distance lighting
• Green-screen production
• Photography
• Event and broadcast production

Recommended Modifiers

For maximum flexibility, the LS 1200d Pro can be paired with:

• Hyper Reflector Narrow
• Hyper Reflector Medium
• Hyper Reflector Wide
• Aputure F10 Fresnel
• Light Dome II
• Large Bowens-mount softboxes
• Lantern modifiers
• Spotlight-style modifiers
• Large diffusion frames
• Bounce materials

The included reflector kit provides an excellent starting configuration, while a large softbox or Fresnel can turn the fixture into a more specialized source.
