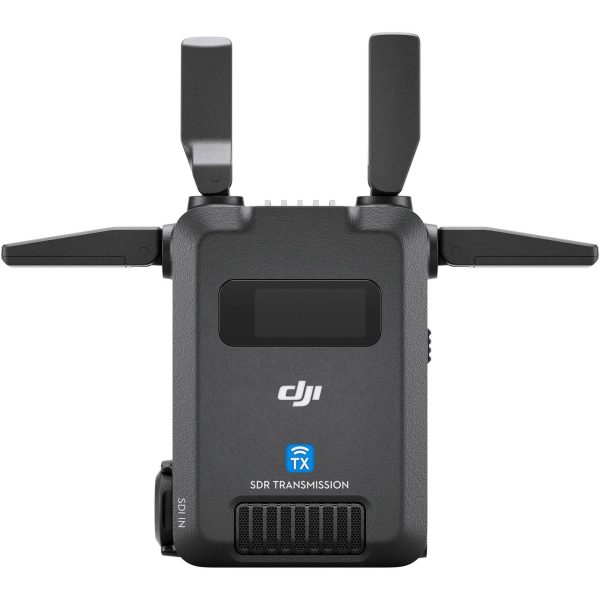

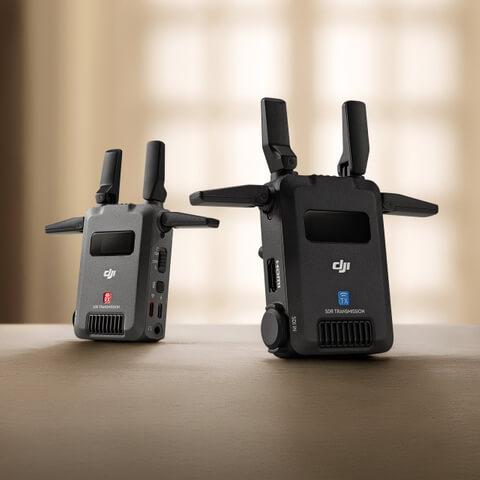

DJI SDR Transmission Combo

Description

The DJI SDR Transmission Combo is a professional wireless video transmission system designed to send live camera footage from a production camera to monitors, tablets, smartphones, and other compatible monitoring devices.

The complete combo includes a DJI SDR Transmission Transmitter and Receiver, providing a flexible wireless monitoring solution for film production, commercial shoots, live events, interviews, studio productions, and video village applications.

Using DJI’s Software Defined Radio (SDR) technology, the system provides improved signal stability, interference resistance, and long-distance transmission compared with conventional Wi-Fi-based video transmitters. DJI specifies transmission distances of up to 3 km / 10,000 ft under FCC conditions in Control mode with Broadcast mode disabled.

Key Features

• Complete transmitter and receiver system
• Wireless video transmission
• Supports up to 1080p/60fps video
• Up to 20 Mbps SDR transmission bitrate
• Up to 3 km / 10,000 ft transmission distance under specified FCC conditions
• Approximately 35 ms transmission latency excluding camera and display latency
• Approximately 80 ms including camera and display latency under DJI’s specified test conditions
• Tri-band SDR transmission
• Automatic frequency hopping
• 2.4 GHz, 5.8 GHz, and DFS frequency bands
• HDMI and SDI connectivity
• Wi-Fi monitoring capability
• USB-C monitoring
• Broadcast Mode for multiple receivers
• Compatible with DJI Ronin ecosystem
• Compact and lightweight design
• NP-F battery compatible
• Designed for professional production environments

Wireless Video Transmission

The DJI SDR Transmission Transmitter connects directly to the camera through SDI or HDMI and wirelessly sends the camera’s video signal to the receiver.

The receiver can then output the video signal to a production monitor through SDI or HDMI, making it suitable for video village, director monitoring, client viewing, and camera department applications.

Long-Range Transmission

DJI SDR Transmission can transmit video up to 3 km / 10,000 ft under FCC conditions in Control mode with Broadcast mode disabled.

Actual range will vary depending on terrain, buildings, interference, antennas, camera configuration, and local RF conditions.

Low-Latency Monitoring

The system is designed for responsive wireless monitoring, with DJI specifying approximately 35 ms latency excluding camera and display latency under its 1080p/60fps test conditions.

This makes it suitable for applications where directors, camera operators, and production personnel need to monitor the live camera feed with minimal delay.

SDI and HDMI Connectivity

The transmitter accepts both SDI and HDMI video inputs, providing compatibility with a wide range of professional cameras.

The receiver provides SDI and HDMI outputs, allowing it to connect directly to professional production monitors, televisions, recorders, or other compatible video equipment.

Multiple Monitoring Options

One of the advantages of the DJI SDR Transmission system is its flexibility for monitoring.

The transmitter can connect directly to compatible smartphones and tablets through Wi-Fi, while the receiver can output video through SDI, HDMI, or USB-C depending on the monitoring setup.

Broadcast Mode

Broadcast Mode allows a transmitter to connect with an unlimited number of receivers, making the system useful for productions where multiple departments need to monitor the same camera feed.

This can be particularly useful for:

• Director monitoring
• Client monitoring
• Video village
• Camera department
• Producer monitoring
• DIT stations
• Multiple production monitors

DJI Ronin Compatibility

The DJI SDR Transmission system integrates with compatible DJI Ronin equipment and can provide additional camera and gimbal control functionality.

DJI identifies compatibility with systems including the DJI RS 4 Pro, DJI RS 4, and DJI RS 3 Pro for supported control functions.

Compact Design

Both the transmitter and receiver are approximately 145 g including antennas, making the system lightweight enough for use on professional camera rigs and gimbal configurations.

Each unit measures approximately 86.5 × 64 × 32 mm, excluding antennas.

Power Options

The transmitter and receiver can be powered through USB-C PD or compatible DC power sources. Both units also support NP-F battery power, making them suitable for mobile production environments.

Ideal Applications

The DJI SDR Transmission Combo is ideal for:

• Film production
• Commercial production
• Television production
• Corporate video
• Music videos
• Interviews
• Live events
• Studio production
• Video village
• Director monitoring
• Client monitoring
• Gimbal operation
• Camera-to-monitor transmission
• Remote camera monitoring
• Multi-monitor productions

Why Rent the DJI SDR Transmission Combo?

The DJI SDR Transmission Combo provides a compact and flexible way to distribute a camera’s live video feed without running long SDI or HDMI cables between the camera and monitoring position.

Its combination of SDI/HDMI connectivity, long-range SDR transmission, low latency, automatic frequency hopping, and multiple monitoring options makes it a strong choice for professional productions.

It is especially useful for camera packages built around systems such as the Sony FX6, Sony FX9, Blackmagic cameras, and other professional cinema or broadcast cameras.

Recommended Rental Package

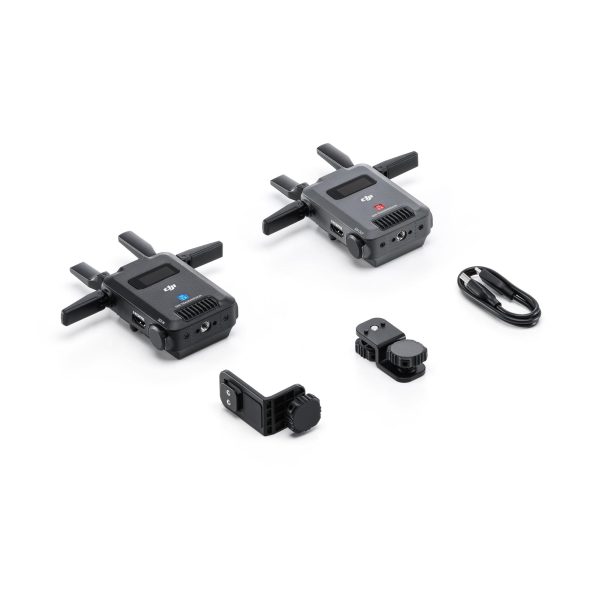

A complete rental package includes:

• DJI SDR Transmission Transmitter
• DJI SDR Transmission Receiver
• Antennas
• USB-A to USB-C cable
• TX camera mounting adapter
• TX gimbal mounting adapter
• Power accessories
• Carrying case

The standard DJI combo includes one transmitter and one receiver.
