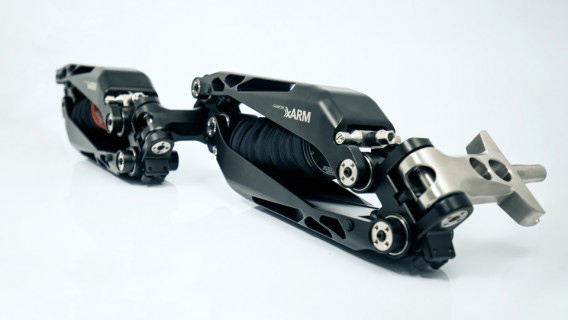

Flowcine xARM

Description

The Flowcine xARM is a professional double-section articulated stabilization arm designed for demanding Steadicam, gimbal, and large-camera stabilization systems.

Engineered for smooth, low-friction operation, the xARM uses interchangeable polymer spring cores to balance different camera and rig configurations. With a lifting capacity of up to approximately 29 kg / 64 lb and a boom range of approximately 780 mm / 30.7 inches, the xARM is designed for professional operators working with heavier cinema camera packages.

Its combination of high payload capacity, smooth movement, low operating friction, and adjustable spring tension makes it particularly useful for productions using heavy cinema cameras, wireless video systems, follow-focus systems, matte boxes, large batteries, and other accessories.

Key Features

• Professional articulated stabilization arm
• Designed for Steadicam and large gimbal systems
• Up to approximately 29 kg / 64 lb lifting capacity
• Approximately 780 mm / 30.7″ boom range
• Double-section articulated design
• Low-friction operation
• Designed for smooth, quiet movement
• Interchangeable spring cores
• Multiple spring configurations for different payloads
• Universal front and rear socket blocks
• Titanium arm posts
• Front- and back-mount configurations
• High/low mode accessories available
• Professional-grade construction
• Supplied with protective Peli Air case

Professional Stabilization

The xARM is designed to reduce the physical load placed on a camera operator while maintaining smooth vertical movement.

The arm’s articulated design allows the operator to boom the camera package up and down while maintaining controlled stabilization. Its spring-core system is designed to provide a smooth and linear lifting response throughout the arm’s operating range.

This makes the xARM especially useful when a camera rig becomes too heavy or cumbersome for a conventional stabilization setup.

High Payload Capacity

The original xARM supports multiple spring configurations covering different payload ranges.

780mm Boom Range

The xARM provides approximately 780 mm / 30.7 inches of boom range.

This gives operators substantial vertical movement while maintaining stabilization, allowing the camera to transition smoothly between higher and lower operating positions.

The extended movement range is particularly useful for:

• Tracking shots
• Walking shots
• Low-angle shots
• High-angle shots
• Stair sequences
• Commercial production
• Narrative filmmaking
• Music videos
• Live-event coverage

Low-Friction Operation

The xARM was engineered around a low-friction articulated design intended to minimize the force required from the operator.

This allows the operator to make smooth boom movements without fighting excessive resistance from the arm.

The manufacturer and distributors describe the system as frictionless or extremely low friction, with smooth starts and stops throughout the boom range.

Interchangeable Spring Cores

One of the xARM’s most useful features is its interchangeable spring-core system.

Different spring cores allow the same arm to be configured for different camera weights. This is particularly useful for rental environments where one stabilization arm may be used with several different camera packages.

The spring system allows the operator to select a configuration appropriate for the complete rig, including:

• Camera body
• Cinema lens
• Matte box
• Follow focus
• Wireless transmitter
• Monitor
• Battery
• Recording accessories
• Camera cage
• Other rigging equipment

Front and Rear Mounting

The xARM supports both front- and rear-mounted configurations through its universal socket blocks.

This provides flexibility when integrating the arm with different Steadicam and stabilization setups. The original xARM is supplied with front and rear mounting socket blocks.

Arm Posts

The xARM uses professional arm posts available in standard diameters.

Standard posts include approximately:

• 0.51″
• 0.625″
• 0.75″

Additional telescoping arm posts are available for higher sled placement and specialized high/low configurations.

High and Low Mode

With the appropriate High/Low Mode Kit, the xARM can be configured for different operating positions.

The kit includes:

• 265 mm arm post
• 165 mm arm post
• Post grips
• Super-high/low mode link bracket
• Low-mode grip handle
• Compatible arm-post hardware

The High/Low Mode Kit allows the system to be configured for super-high, high, and low-mode operation.

Applications

Steadicam Production

The xARM is designed to support professional Steadicam configurations and heavier camera packages.

Gimbal Operation

The high payload capacity makes the xARM suitable for supporting larger cinema camera and gimbal combinations.

Feature Films

Use the xARM for long tracking shots, complex camera movement, and extended handheld-style stabilization work.

Commercials

Ideal for commercial productions requiring smooth, controlled camera movement with cinema cameras and large lens packages.

Music Videos

The boom range and high payload capacity provide additional movement options for creative camera work.

Live Events

Useful for productions requiring stabilized camera movement while carrying heavier professional camera systems.

Automotive Production

The arm can be integrated into specialized stabilization configurations for moving-camera and vehicle-based production setups.

Compatible Camera Systems

The xARM is not tied to a specific camera brand. Its suitability depends primarily on the total weight and physical configuration of the complete rig.

Potential applications include camera packages built around:

• ARRI cinema cameras
• RED cinema cameras
• Sony cinema cameras
• Blackmagic cinema cameras
• Canon cinema cameras
• Large mirrorless cinema configurations
• Professional gimbal systems

Always verify the complete payload, mounting hardware, and stabilization system compatibility before operation.
