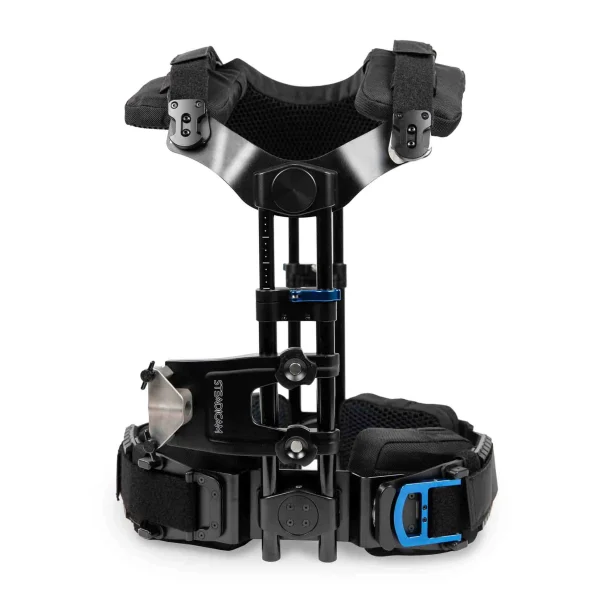

Steadicam Exovest

Description

The Steadicam Fawcett Exovest is a professional semi-rigid exoskeletal support vest designed for Steadicam operators working with demanding cinema and broadcast camera systems. Its unique structure transfers the weight of the camera system primarily into the pelvis while transferring operating torque toward the upper back and shoulder region.

Unlike conventional Steadicam vests that rely heavily on chest straps, the Exovest is designed to leave the chest and abdomen largely unrestricted, allowing the operator to breathe and move naturally while maintaining a stable connection to the camera support system.

The result is a highly ergonomic support system designed to reduce muscular strain and provide improved control during extended Steadicam operating.

Key Features

• Semi-rigid exoskeletal vest design
• Ergonomic transfer of camera weight into the pelvis
• Upper-back torque transfer system
• Four integrated pivot points for natural body movement
• No restrictive chest straps
• Allows unrestricted breathing and arm movement
• Rigid sliding components for precise fitting
• Double- and triple-purchase adjustment straps
• On-the-fly load adjustment
• Symmetrical front and rear support structure
• Supports front or rear arm mounting configurations
• High-shoulder torque-resistance geometry
• Quick relaxation between takes using the over-center lever
• Designed for professional Steadicam operation
• Supplied with a padded soft carrying bag

Ergonomic Exoskeletal Design

The Exovest was developed around the principle of transferring the forces created by a Steadicam system to areas of the body that are better suited for supporting them.

Four padded areas around the waist transfer much of the vertical load toward the pelvis, while the upper-back pad system handles the torque generated by the camera and stabilizer.

The rigid outer structure extends the torque-resisting lever toward the shoulder area, reducing the amount of force required from the operator to counterbalance the Steadicam system.

Natural Movement

The Exovest incorporates four integral pivots that allow the vest to move with the operator.

The lower pivot system accommodates natural hip movement while walking, while the upper pivot system allows the shoulders to move freely as the operator frames and follows the subject.

This makes the Exovest particularly useful for long tracking shots, walking sequences, commercial productions, narrative filmmaking, live events, and other situations where the operator needs to remain mobile.

Front and Rear Arm Mounting

The Exovest’s symmetrical twin-rod structure allows the socket block to be positioned for different operating configurations and can accommodate front or rear arm mounting.

This provides greater flexibility when configuring a Steadicam system for different shooting styles and operator preferences.

Compatibility

The Exovest is designed to work with professional Steadicam systems using the appropriate socket block and arm configuration.

The large socket block configuration is compatible with systems such as:

• Steadicam Archer
• Steadicam M-1
• Steadicam Shadow
• Steadicam Ultra2

The small socket block configuration is used with compatible systems such as the Steadicam Zephyr.

For rental customers, the socket block should be specified clearly because compatibility depends on the Steadicam arm/system being used.
